Drawn Cup Needle Roller Bearing
22,225
28,575
25,4
Part number : J-1416-JTEKT
Description

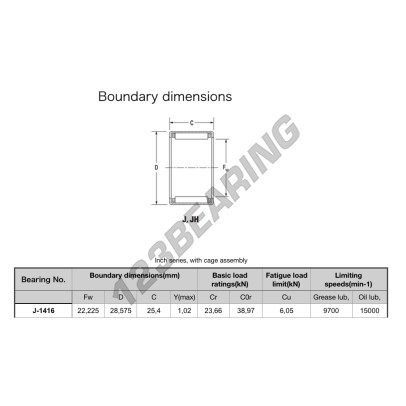

The Drawn Cup Needle Roller Bearing, known as J-1416-KOYO JTEKT, has an inner diameter of 22.225 mm, an outer diameter of 28.575 mm and a thickness of 25.4 mm.
You can find all the information you need about our products in our expert's advice, by clicking here Here
8 to 10 days
Secure payment
Need help or advice?
+33.359.36.04.90
Description
The Drawn Cup Needle Roller Bearing, known as J-1416-KOYO JTEKT, has an inner diameter of 22.225 mm, an outer diameter of 28.575 mm and a thickness of 25.4 mm.
You can find all the information you need about our products in our expert's advice, by clicking here Here
Secure payment
Need help or advice?
+33.359.36.04.90
| Brand | JTEKT |
|---|---|
| Inside diameter | 22,23 mm |
| Outside diameter | 28,58 mm |
| Thickness | 25,40 mm |
| Limiting speed | 9 700 rpm |
| Weight | 38 g |
| Dynamic load | 23,66 kN |
| Static load | 38,97 kN |
| Packaging | 1 |
The Drawn Cup Needle Roller Bearing, known as J-1416-KOYO JTEKT, has an inner diameter of 22.225 mm, an outer diameter of 28.575 mm and a thickness of 25.4 mm.
