Drawn Cup Needle Roller Bearing
15
22
12
Part number : TAM1512-IKO
Description

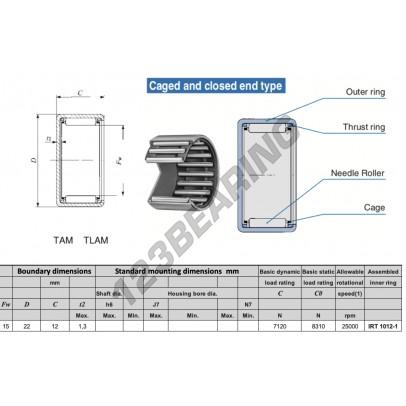

The Drawn Cup Needle Roller Bearing, known as TAM1512-IKO IKO, has an inner diameter of 15 mm, an outer diameter of 22 mm and a thickness of 12 mm.
You can find all the information you need about our products in our expert's advice, by clicking here Here
8 to 10 days
Secure payment
Need help or advice?
+33.359.36.04.90
Description
The Drawn Cup Needle Roller Bearing, known as TAM1512-IKO IKO, has an inner diameter of 15 mm, an outer diameter of 22 mm and a thickness of 12 mm.
You can find all the information you need about our products in our expert's advice, by clicking here Here
Secure payment
Need help or advice?
+33.359.36.04.90
| Brand | IKO |
|---|---|
| Inside diameter | 15 mm |
| Outside diameter | 22 mm |
| Thickness | 12 mm |
| Limiting speed | 25 000 rpm |
| Dynamic load | 7,12 kN |
| Static load | 8,31 kN |
| Packaging | 1 |
The Drawn Cup Needle Roller Bearing, known as TAM1512-IKO IKO, has an inner diameter of 15 mm, an outer diameter of 22 mm and a thickness of 12 mm.
