O-Ring seal OR-34.52X3.53-EPDM70

34.52 34.52 41.58 41.58 3.53 3.53

Part number : OR-34.52X3.53-EPDM70

GEN

Description

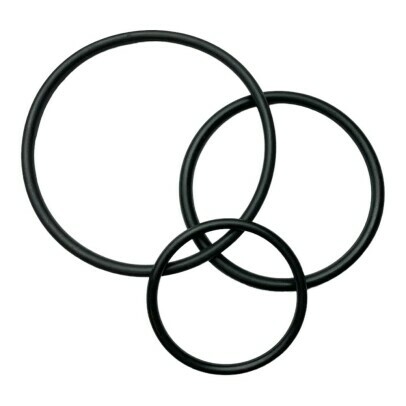

The O-ring Seal with the reference OR-34.52X3.53-EPDM70 has an inner diameter of 34.52 mm and a thickness of 3.53 mm. It is made of EPDM.

Your price: 0,83 €excl. VAT

  50+ parts in stock (23 hours ago )

Quantity Price
1 - 19 0,83 €excl. VAT
20 - 49 0,72 €excl. VAT
50 - 99 0,61 €excl. VAT
100 - 499 0,50 €excl. VAT
500 - inf 0,39 €excl. VAT
For more information, please request a quote
logo_delivery Last departure in

Added

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

Description

The O-ring Seal with the reference OR-34.52X3.53-EPDM70 has an inner diameter of 34.52 mm and a thickness of 3.53 mm. It is made of EPDM.

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

+33.359.36.04.90

CUSTOMERS ALSO BOUGHT
E-clip - E-CLIP-6 GEN

E-CLIP E-CLIP-6

6 6
Deep groove ball bearing - 3212-ATN9-SKF SKF

DEEP GROOVE BALL BEARING 3212-ATN9-SKF

60 60 110 110 36.5 36.5
X-Ring seal - XR-37.47X5.33-NBR70-QR4325N28 GEN

X-RING SEAL XR-37.47X5.33-NBR70-QR4325N28

37.47 37.47 5.33 5.33
TECHNICAL DATA
  • BRAND
  • INSIDE DIAMETER
    34.52  MM
  • OUTSIDE DIAMETER
    41.58  MM
  • THICKNESS
    3.53  MM
  • MATERIAL
    EPDM
  • TYPE
    OR
  • HARDNESS
    70  S
  • WEIGHT
    1.35  G
  • PACKAGING
    1
Compatibilities
Description

The O-ring Seal with the reference OR-34.52X3.53-EPDM70 has an inner diameter of 34.52 mm and a thickness of 3.53 mm. It is made of EPDM.

EXPERT ADVICE

How to read the reference of an O-ring?

Example:
OR-40X3-NBR90
Where
OR = product type (O-ring or O-ring seal)
40X3 = inside diameter X thickness
NBR = matter
90 = shore hardness

Shore hardness is a material hardness scale, usually between 70 and 90 for O-rings. The higher the number, the harder the material.

What does the number mean at the end of the reference?

This is the indication of shore hardness. Shore hardness is a material hardness scale, usually between 70 and 90 for O-rings. The higher the number, the harder the material.

Difference between NBR, FPM, EPDM, MVQ?

These are the different types of rubber. Each material will be more or less suitable for a use. Refer to the following information: FOR OILS NBR = Nitrile = Butadiene rubber - Acrylonitrile
        from -30°C to +120°C
FPM = Viton = Fluorinated Rubber
        from -20°C to +200°C
MVQ = Silicone rubber
        from -50°C to +210°C
FOR HYDROCARBONS NBR = Nitrile = Butadiene rubber - Acrylonitrile
        from -30°C to +120°C
FPM = Viton = Fluorinated Rubber
        from -20°C to +200°C
FOR BRAKE FLUID EPDM = Ethylene Rubber - Propylene - Diene
        from -40°C to +150°C
FOR WATER EPDM = Ethylene Rubber - Propylene - Diene
        from -40°C to +150°C
 FOR MORE DETAILS ON THE MATERIALS, THEIR STRENGTHS AND LIMITS OF USE, REFER TO THE COMPLETE DESCRIPTION ON THE SEALED SEARCH PAGE

How to choose the size of my O-ring?

An O-ring should not, in general, be too stretched. It is therefore preferable to take a dimension as close as possible to the groove diameter, if applicable.
