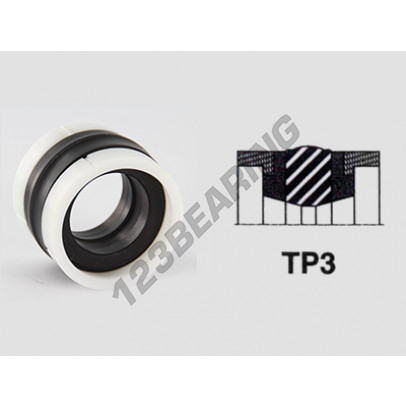

Stempeltaetning TP3-26X45X31-NBR90

26 26 45 45 31 31

Varenummer : TP3-26X45X31-NBR90

GEN

Beskrivelse

The TP3-26X45X31-NBR90 Piston Seal reference is intended for mounting in the piston head. For this reference, the external diameter of the piston rod must be 26 mm, the internal diameter of the cylinder body 45 mm and the thickness available at the base of the groove 31 mm. It is manufactured in  NBR.

product_sheet product_sheet product_sheet
product_sheet_padlockSikker betaling

Brug for hjælp eller råd?

+33.359.36.04.90

TEKNISKE DATA
  • MÆRKE
    GEN
  • INDVENDIG DIAMETER
    26  MM
  • UDVENDIG DIAMETER
    45  MM
  • TYKKELSE
    31  MM
  • MATERIALE
    NBR
  • TYPE
    TP3
  • HÅRDHED
    90  S
  • VÆGT
    15  G
  • EMBALLAGE
    1
  • STANDARD
    Ingen standard
Beskrivelse

The TP3-26X45X31-NBR90 Piston Seal reference is intended for mounting in the piston head. For this reference, the external diameter of the piston rod must be 26 mm, the internal diameter of the cylinder body 45 mm and the thickness available at the base of the groove 31 mm. It is manufactured in  NBR.
